Lead Anode Chrome Plating
Lead Anode for Hard Chrome Plating High-Purity, Long Lasting Anodes for Superior Electroplating Results.
Material - Pb-Sn(6-8%)
Dimensions - length - upto 12 meters* (Customizable).
Current Density - 5 - 15A/Dm2(Optimized for chrome baths).
Surface Finish - Smooth-finished.
Standards - ASTM B29, DIN 17640, IS 373
Why Choose Supercon's Lead Anodes?

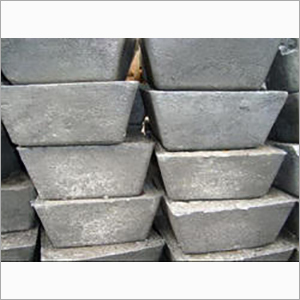

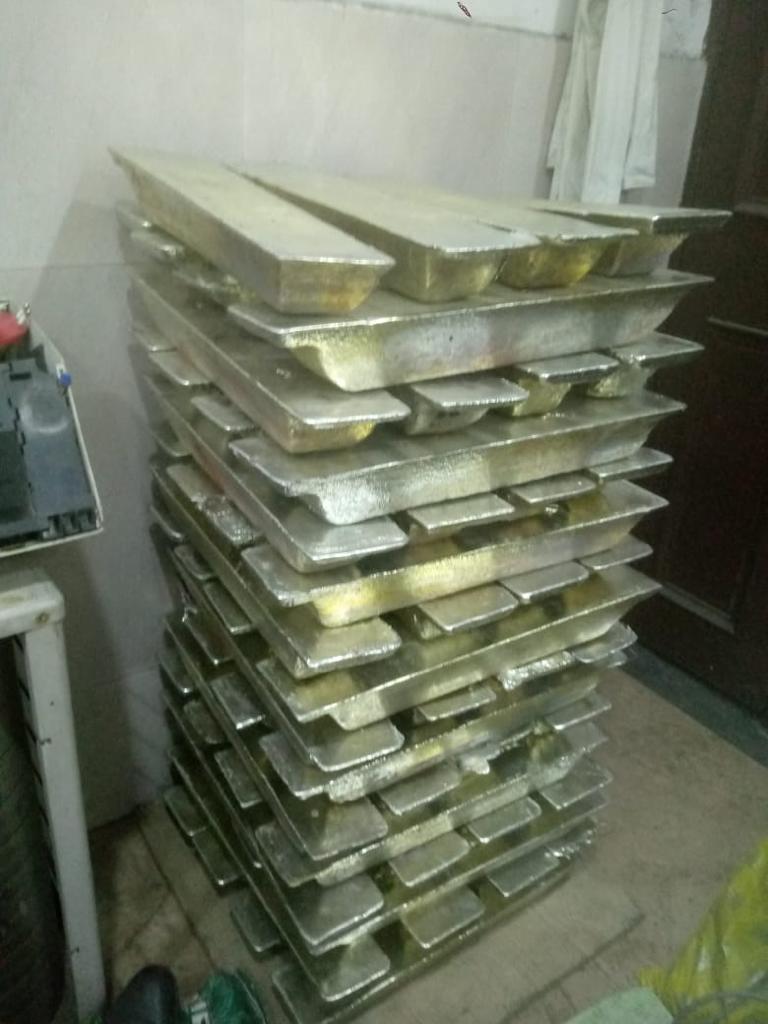

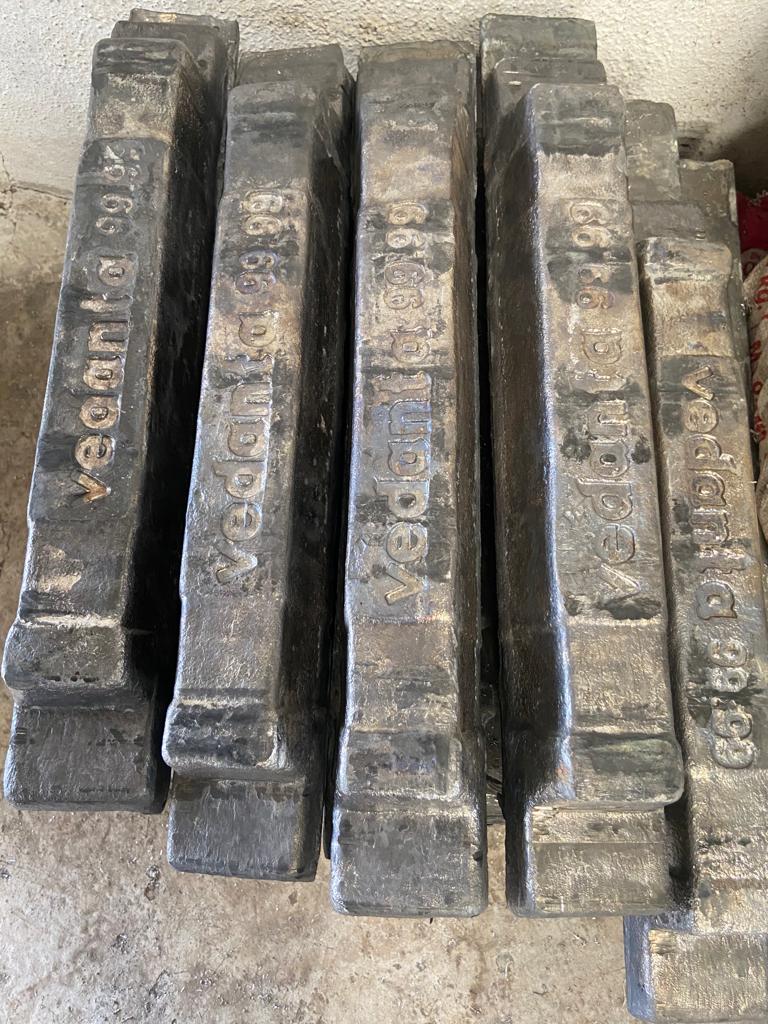

99.9% Pure Lead Raw Material : Minimal impurities for consistent plating quality.Corrosion-Resistant Alloys : Optional *Pb-Sn(6-8%) For extended lifespan.
Custom Fabrication : Tailored shapes (plates,rods,baskets) to fit your tank dimensions.
ISO 9001 Certified : Precicion-engineered for industrial durability.

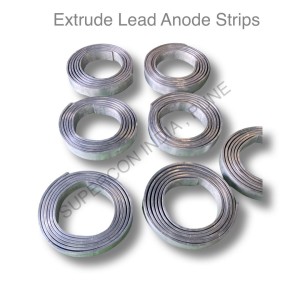

Key benefits for Extruded lead Anodes
1. Uniform Plating Thickness- Low Solubility ensures stable current distribution.
- Reduces burning/peeling defects in chrome deposists.
- 1.5x longer lifespan vs inferior casted lead an Anodes.
- Resists sulfuric acid attack in chrome baths
- Simple oxide removal(light scrubbing or acid dip).
- Compatible with recycling for sustainability.
Applications
- Hydraulic Cylinders (Automotive, Aerospace)
- Industrial Rollers(Printing, Textile Machinery)
- Mold & Die Components
- Decorative Chrome Plating
Custom Solutions by Supercon India -
- Perforted/Basket Designers - For Complex Parts.
- Hooked/Rod Configurations - Easy Tank mounting.
- Fast Turnaround - Samples avaliable in 7 days.
FAQ
Q. How often should lead anodes be replaced?Typically 12-24 months, depending on current density and both chemistry.
Q. Can you supply anodes for large chrome plating tanks?
Yes, We fabricate anodes upto 12 meter length (or larger as per demand).
Q. Do you provide technical suppport for anode selection?
Absolutely - our engineers assist with size, alloy.
Types Of Anodes We Manufacture

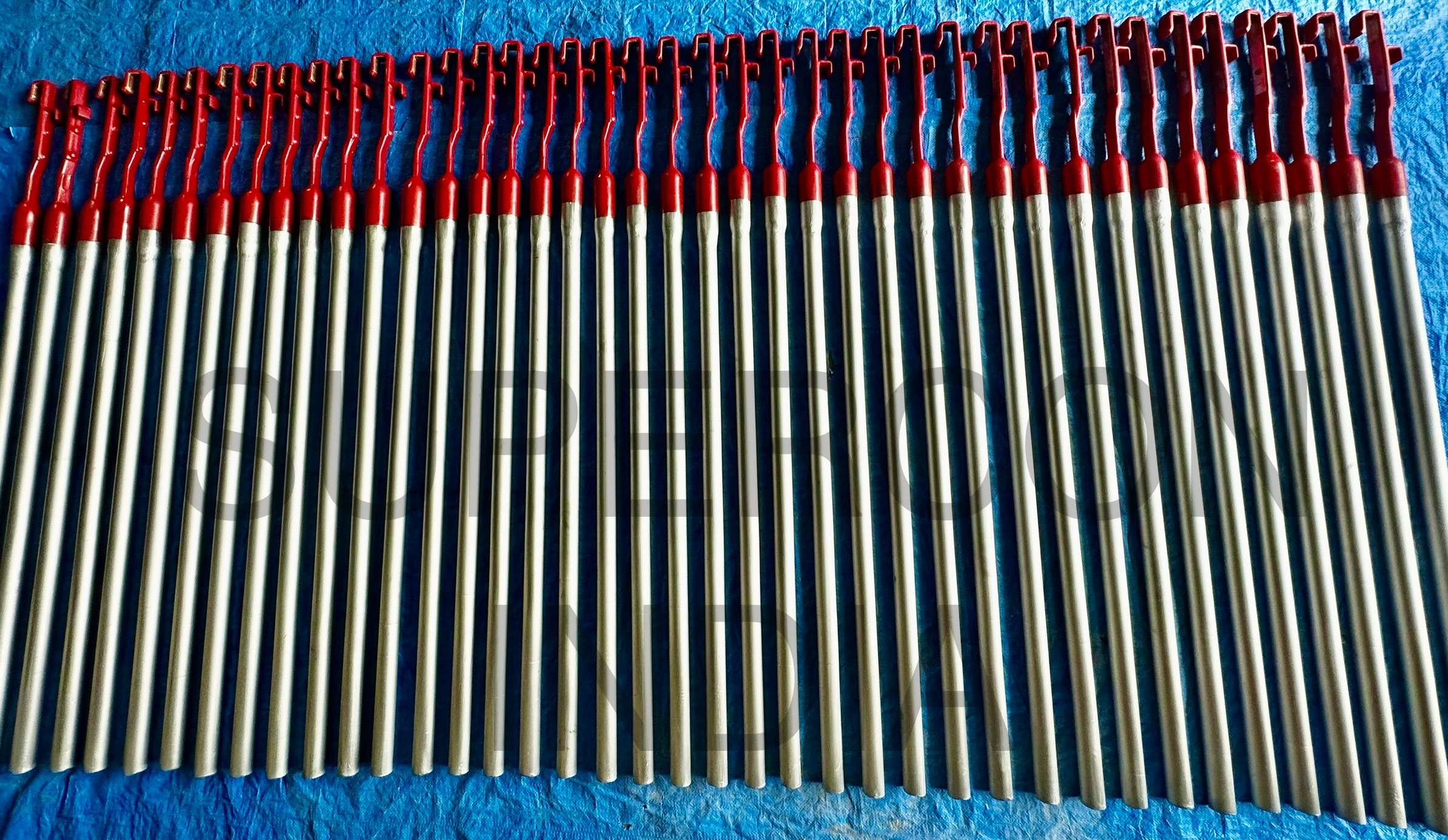

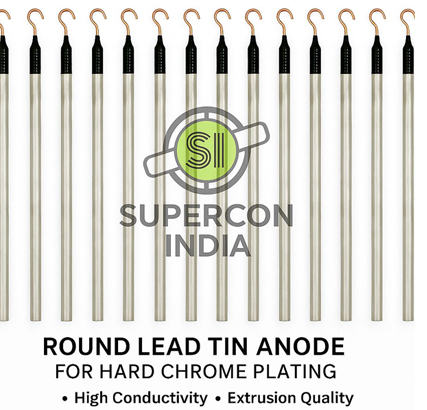

Lead Anode Chrome Plating :
Circular cross-section anode are generally used in automatic chrome plating plants.Round anodes have advantage of having electrically active surface area around its entire circumference and have more life compared to other anodes.

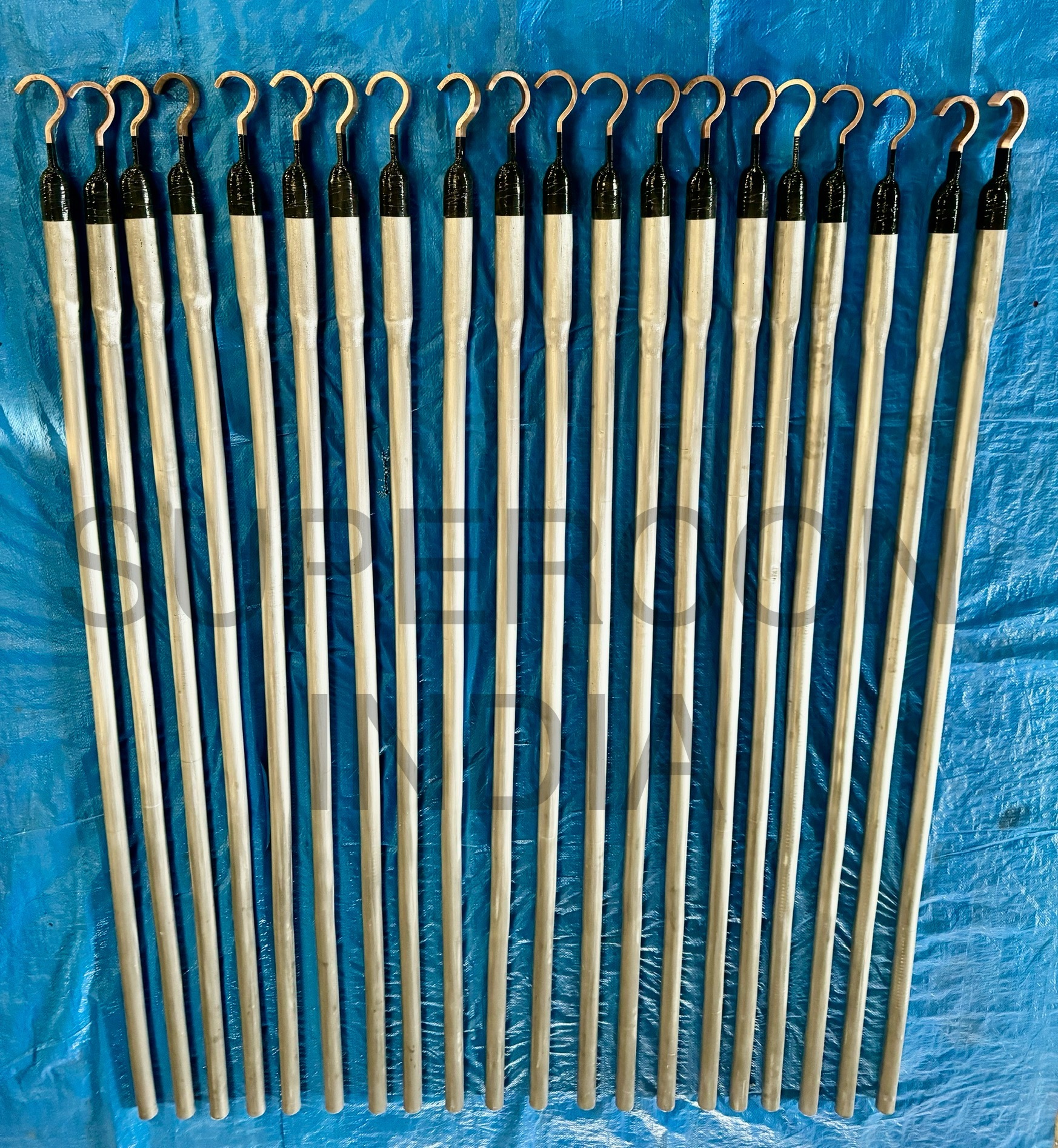

Long Round Lead Anode Chrome Plating :
This type of Lead Anode Chrome Plating are basically used in Conventional Hard Chrome Plating Plants concerning majorly with plating of Long Cylinders,Tie-Bars,long mandrel bars etc.

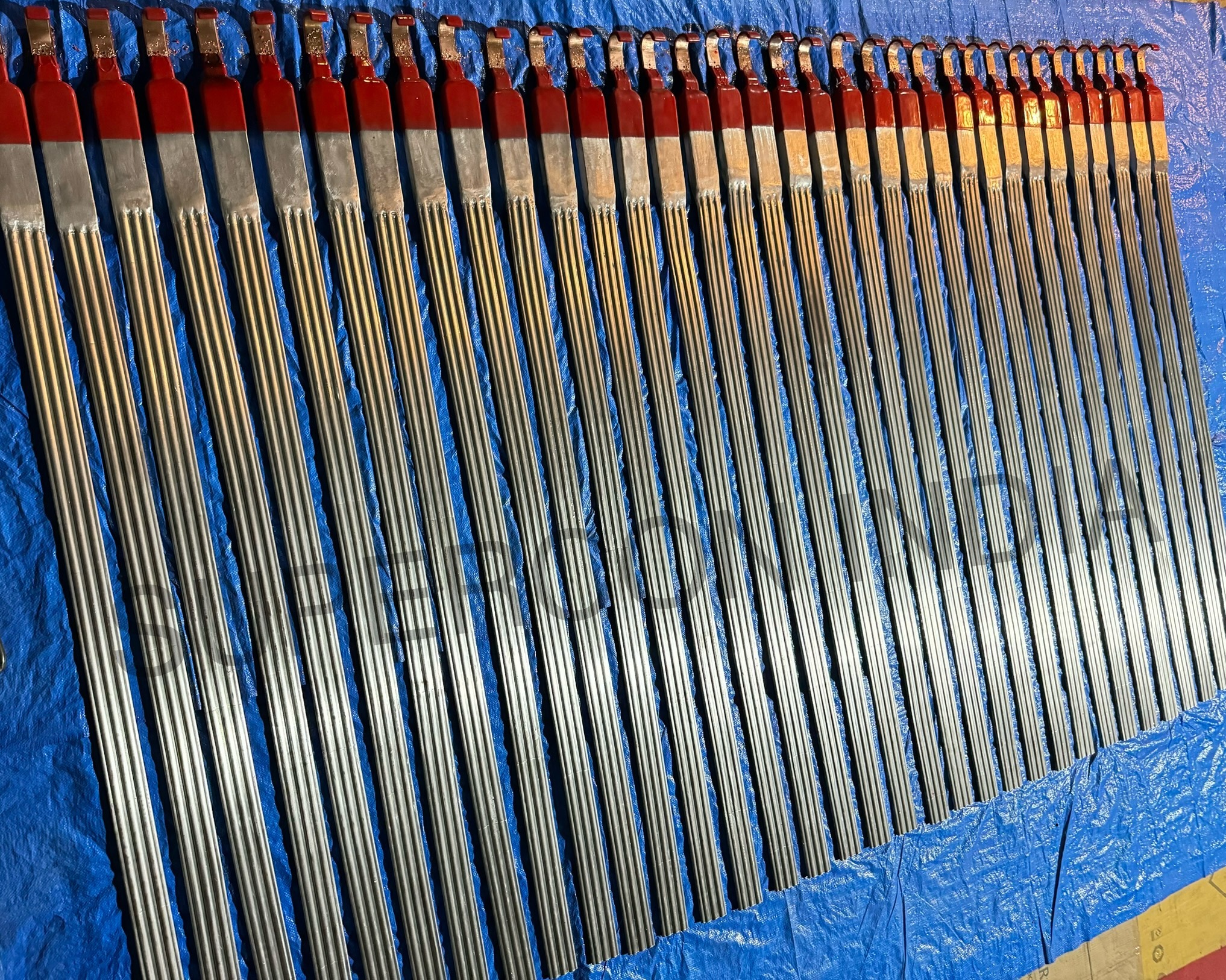

Corrugated Shape C/s Lead Anode Chrome Plating :
Corrugated type anode are most widely used anodes in small Chrome plating tanks .Its weighs less than conventional rectangular cross-section anodes.Its has more electrically active surface area due to its corrugated cross-section.

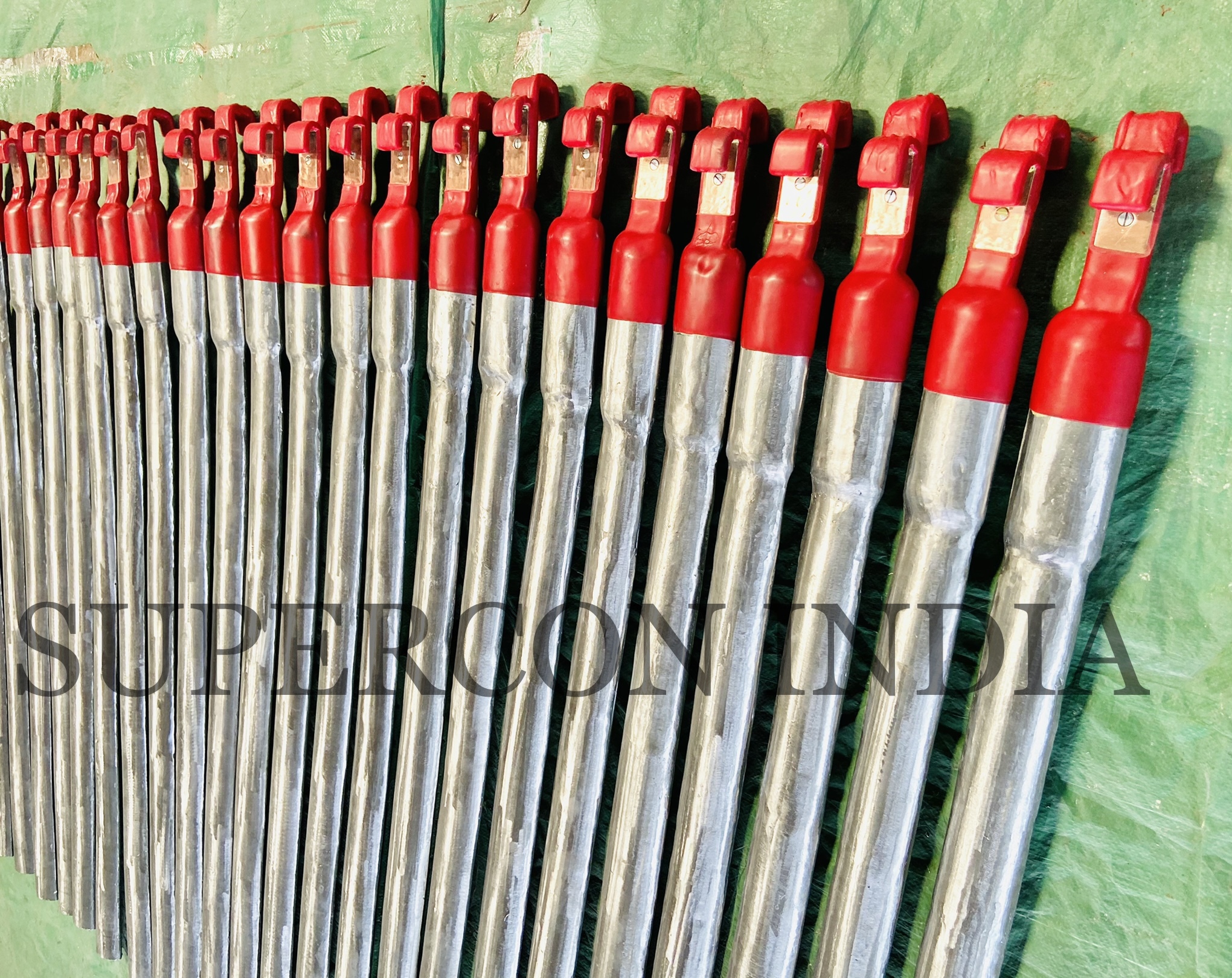

Elliptical Cross-Section Anode :
Elliptical cross section anode have more more electrically active surface area compared conventional circular cross-section anode.They are also mostly used automatic chrome plating plants.

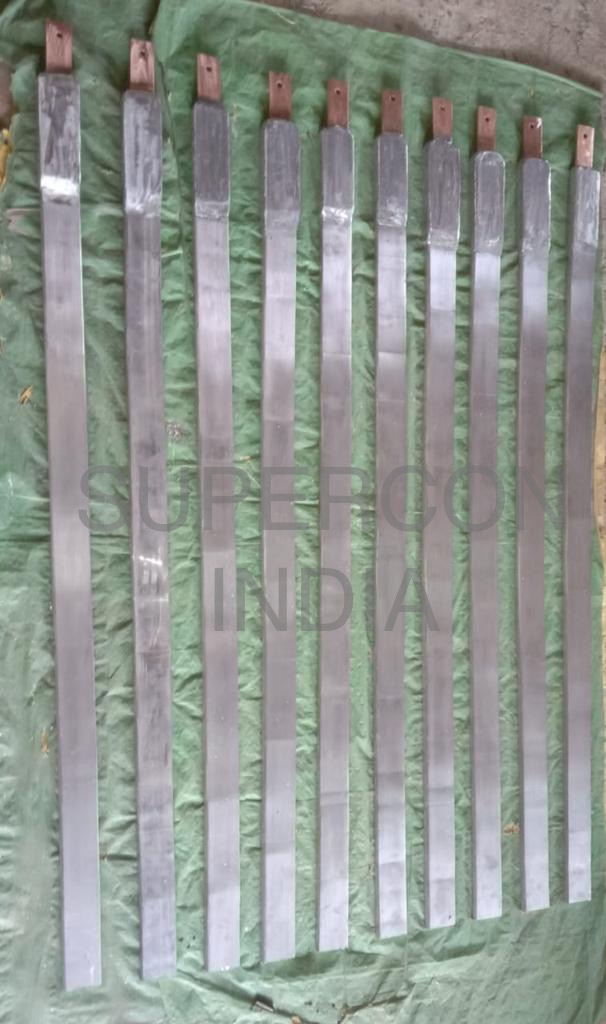

Rectangular Cross-Section Anode :
Rectangular cross-section anode have large electrically active surface area generally facing towards job.But compared to round anode they have less life cycle due to reduced thickness of anode.
Flexible Lead Tin Rod Anodes :
Lead tin alloy rods are flexible and used in plating of small intricate parts of large jobs.Applications – Gun barrels , Twin screws with deep Spiral grooves ( For achieving Plating thickness and uniformity in those deep spiral grooves) etc.

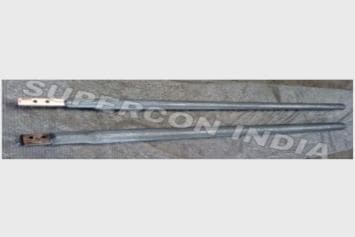

Bonded Chrome Plating Anode :
Some of anodes which have large diameter or long length which are not cost effective when manufactured conventionally.Lead tin alloy is bonded on core metal such as Mild steel or copper.Bonded anodes weighs less and cost effective than conventional anodes.

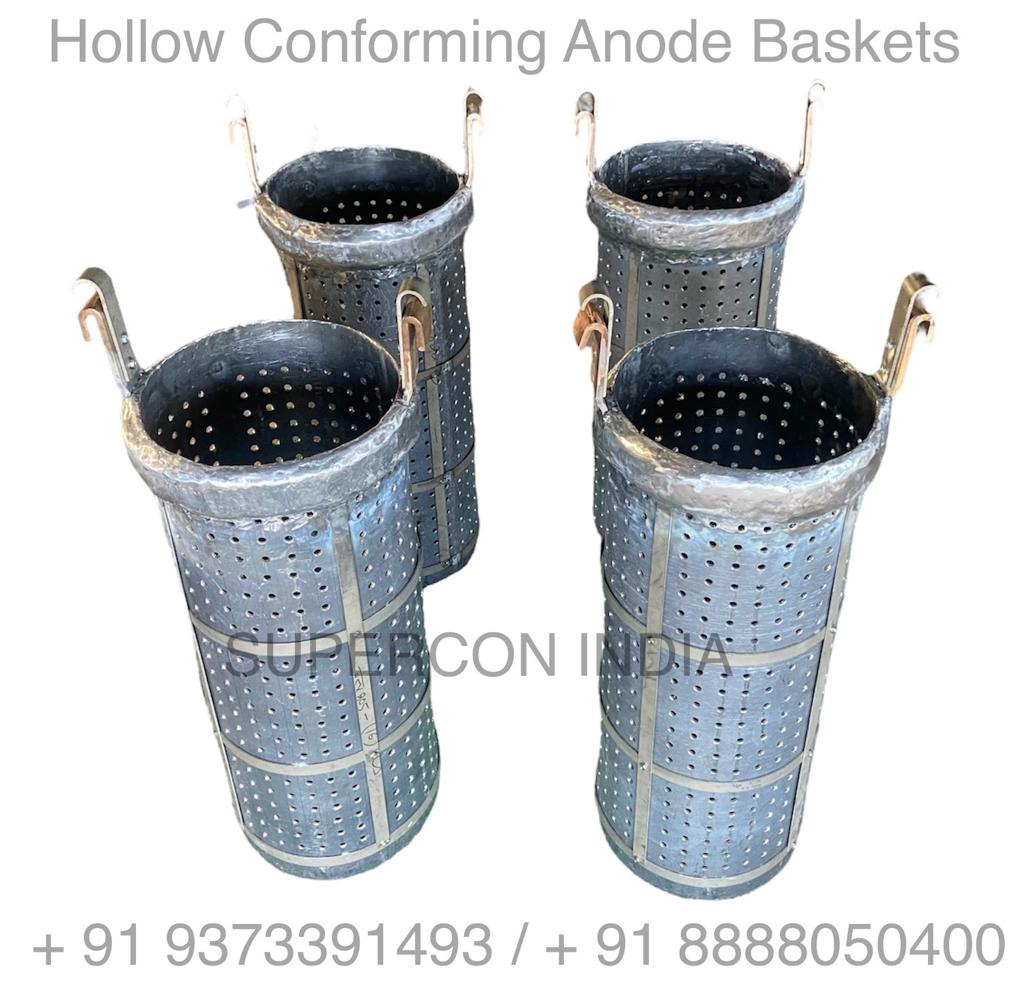

Hollow Conforming Chrome Plating Anode :
Conforming anode are nowadays used in plating of piston rods ,sleeves etc.Plating time is considerably reduced when compared with conventional anodes,hence production is increased.Uniform Chrome plating can be observed using conforming anodes. Conforming anodes are best for thicker deposits and especially for heavy build-up work as they offer optimum deposit speed and uniformity.

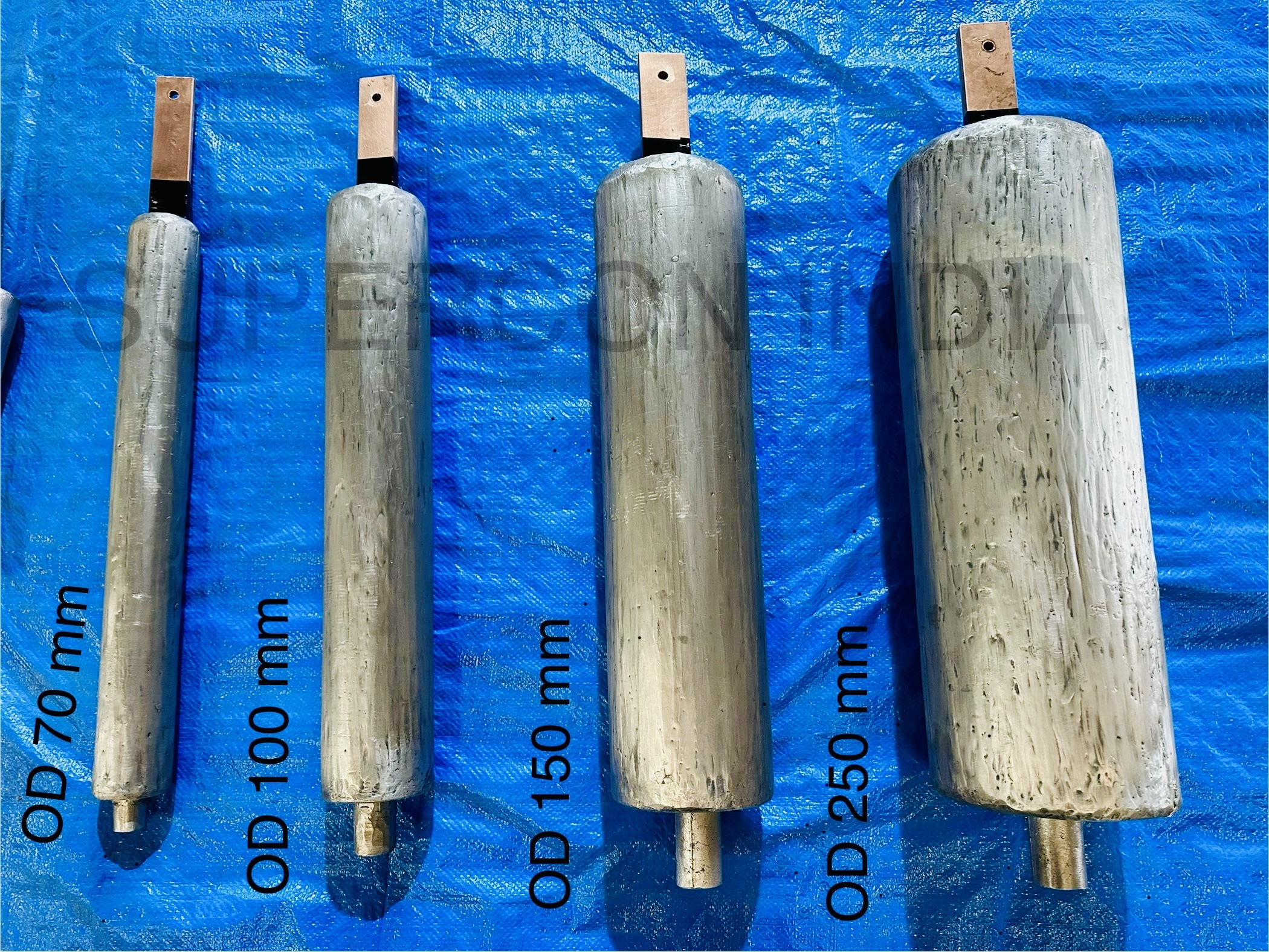

ID chrome Plating Anodes :
We at Supercon India are specialist in manufacturing ID plating anodes.We cast,extrude,bond irregular sahpe and size of anodes.We produce special job oriented anodes according to customer requirements where factors like plating thickness ,deposit speed and uniformity of plating are taken into consideration.
